Huawei releases the new Mate 30 series with Horizon display

-

Huawei releases the new Mate 30 series with Horizon display feature image

Despite the pressure of the US-China trade war and after a series of leaks, Huawei officially launched the Mate 30 series at an event in Munich, Germany. The new phones included in Mate 30 line up are the Huawei Mate 30, Mate 30 Pro and the Mate 30 Porsche Design. The Porche Design is a premium model; however, the Pro model is the direct competitor against the Apple iPhone 11 Pro Max and Samsung Galaxy Note 10+.

[wpinsertshortcodead id=”zxikm5d3e04a8f1451″]

Huawei Mate 30 Pro

Huawei Mate 30 Pro 5G

Design and Display

The smartphone has an exquisite halo ring design which is a perfect fusion of reflection and refraction. Huawei mentioned that the professional camera inspires the design, which is iconic, pure, and sleek. Overall the phone has an ergonomic shape for comfortable holding. It has a Gloss-to-Matte gradient finish on the back, which makes it more resistant from slipping and fingerprints. The device has a dimension of 73.1mm width, 158.1mm of height and 8.8mm of depth, and it weighs around 198g, including the battery. It comes with six colors- Orange, Forest Green, Cosmic Purple, Space Silver, Emerald Green, and Black.

Huawei Mate 30 Pro design

The Huawei Mate 30 Pro has a 6.53-inch FHD+ 88° widely curved OLED display with a resolution of 1,176 x 2,400 pixels, HDR and full coverage of the DCI-P3 color gamut. Huawei calls the display “Horizon Display.” It supports 16.7 million colors. There is a small power button on the right edge of the device. However, like Vivo Huawei used pressure buttons on the curved part of the display which will detect presses for the volume buttons and shutter key for the camera. It also supports the M-Pen stylus, which can detect 4,096 levels of pressure and has an Always-On-Mode.

[wpinsertshortcodead id=”bzyqm5d3e04029f48f”]
detect presses for the volume

The device is IP68 certified, which means it is resistant to splash, water, and dust in specific situations. However, water and dust-proofing are not permanent, and resistance may decrease as a result of normal wear over time.

Camera

Mate 30 Pro features a quad camera setup including 40-megapixel SuperSensing Wide camera of f/1.6 aperture and OIS, 40-megapixel ultra-wide Cine camera of f/1.8 aperture, 8-megapixel Telephoto Camera of f/2.4 aperture and OIS for a 30x optical zoom (80mm focal length) and 5x optical hybrid zoom and a 3D Depth Sensing Camera which supports Autofocus (phase focus, contrast focus) and AIS (HUAWEI AI Image Stabilization).

Mate 30 Pro camera image

Both the 40-megapixel cameras use a 3D ToF sensor to render the bokeh effect in videos. At the front, it has a 32-megapixel selfie camera of f/2.0 aperture. The ultra-wide Cine camera has a super large 1/1.54 inch sensor which ensures sufficient light in any condition and supports adjustable light sensitivity up to ISO 51200 in extremely dark situations.

40MP Cine Camera Sample video
Super Sensing camera sample
40MP SuperSensing Camera Sample
8mp telephoto sample
8MP Telephoto Camera Sample
3D Depth Sensing Camera Sample
3D Depth Sensing Camera Sample

The device supports 4K 60fps video recording and can record super slow-motion videos at [email protected] or [email protected] The camera can also shoot 4K time-lapse with HDR+ colors and real-time video motion blur effect with the help of the depth-sensing camera.

[wpinsertshortcodead id=”zxikm5d3e04a8f1451″]

Performance

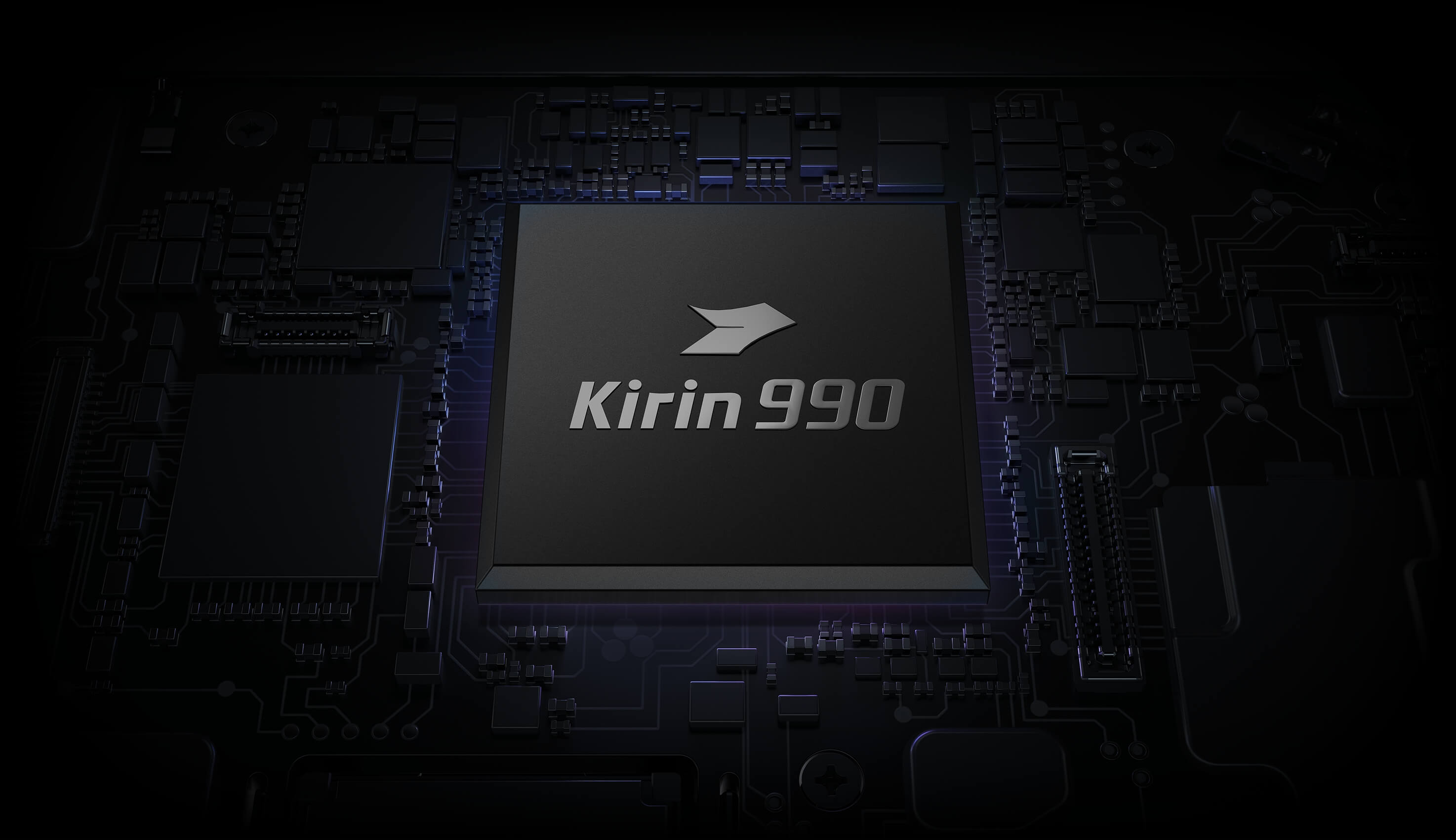

Huawei Mate 30 Pro is powered by Kirin 990 chipset which is built on a 7nm+ EUV process and a powerful 16-Core Mali-G76 MP16 GPU with an upgraded GPU Turbo. The Kirin 990 has a 2x2x4 octa-core configuration which includes 2 A76 cores clocked at 2.86GHz, 2 A76 cores clocked at 2.36GHz and 4 A55 cores clocked at 1.95GHz. Its also equipped with a graphene film that carries the heat away to keep it cool from the chipset.

Kirin 990

The new SoC includes an improved ISP that guarantees much better noise-reduction and real-time video post-processing and rendering. The NPU is utilizing Huawei’s Da Vinci architecture to set 1 Big Core (or 2 in the 5G SoC) with 1 Tiny Core. The device will be available will be with 8GB of RAM and 256GB of internal storage.

Battery

The smartphone is equipped with a 4,500mAh battery. It supports 40 watts fast wired charging through USB Type-C port and 27 Watt fast wireless charging. The phone can be used to charge other phones wirelessly which is know as Reverse Wireless Charging.

Huawei super charge

Network and Connectivity

Mate 30 Pro 5G design supports 5G Non-Standalone (NSA) and StandAlone (SA) modes, together with 2G/3G/4G network along with double SIM, Dual Standby and FDD/TDD complete frequency band compatibility for smooth network connection. The 5G versions support eight 5G bands, as versus Samsung’s Note10+ 5G supports only three bands.

[wpinsertshortcodead id=”bzyqm5d3e04029f48f”]

For connectivity the phone has Wi-Fi 802.11 a/b/g/n/ac (wave2), 2.4 GHz and 5 GHz, Bluetooth 5.1, BLE, SBC, AAC, LDAC,

Type-C USB 3.1 GEN1 and Type-C ear jack. The phone also supports NFC with Read-Write mode, Peer to Peer mode, and Card Emulation mode.

Air Gestures

The front camera, 3D Depth Sensing Camera and Gesture Sensor are inducted together to identify the facial features and detect the movement of hands. With this real-time information received in the Tiny-Core NPU, many commands such as unlocking, slide-changing, and screenshots can be executed swiftly by looking at the screen or swiping the hands simply.

Air Gestures

System

Huawei Mate 30 Pro will run on customized EMUI 10 based Android 10. Huawei also confirmed that the Mate 30 series rather than using Google Mobile Services it will use its own Huawei Mobile Services which features the Huawei AppGallery store. The custom EMUI includes essential apps such as Huawei browser, Themes, Cloud, and Music, among others.

Huawei AppGallery store

EMUI 10 comes with a dedicated Dark Mode which instead of simply reverting the black and white color, repeated human-centric lab tests provided an undisputed reference for selecting the most comfortable color contrast and gradation in dark mode. This human-centered design can avoid extreme brightness stimulation to deliver a more comfortable and immersive reading experience.

[wpinsertshortcodead id=”zxikm5d3e04a8f1451″]
EMUI Dark Mode

Price

The Huawei Mate 30 Pro 5G variant has a price tag of EUR 1,199 (Rs. 94,600 approximately ) for the 8GB RAM + 256GB storage configuration whereas the default Mate 30 Pro with 8GB RAM + 256GB storage option price is set at EUR 1,099 (approximately Rs. 86,700).

Huawei Mate 30 Pro Full specification

DISPLAY Size: 6.53 inches

Colour: 16.7 million colors

Type: OLED Resolution: FHD+ 2400 x 1176
SIZE Width: 73.1 mm

Height: 158.1 mm

Depth: 8.8 mm Glass / 9.5 mm Vegan Leather

Weight: Approx 198 g (including the battery)
COLOUR Orange
Forest Green
Cosmic Purple
Space Silver
Emerald Green
Black
PROCESSOR CPU: HUAWEI Kirin 990 5G Octa-core Processor
2 x Cortex-A76 Based 2.86 GHz + 2 x Cortex-A76 Based 2.36 GHz + 4 x Cortex-A55 1.95 GHz

GPU: 16-Core Mali-G76

NPU: Dual Big Core + Tiny Core NPUs (Neural-network Processing Unit)
OPERATING SYSTEM EMUI10 (Based on Android 10)
MEMORY 8 GB RAM + 256 GB ROM
External Memory Support: NM SD Card, up to 256 GB
CAMERA Rear Camera: SuperSensing Cine Camera
40 MP (Cine Camera, f/1.8 aperture) + 40 MP (SuperSensing Camera, f/1.6 aperture, OIS) + 8 MP (Telephoto Camera, f/2.4 aperture, OIS) + 3D Depth Sensing Camera supports Autofocus (phase focus, contrast focus), supports AIS (HUAWEI AI Image Stabilization).

Front Camera: 32 MP, f/2.0 aperture
BATTERY 4500 mAh (Typical Value)
CHARGING HUAWEI SuperCharge (Max 40 W)
Wireless HUAWEI SuperCharge (27 W)
NETWORK Primary SIM card:
5G NR: n77 / n78 / n79,n1 / n3 / n28 (TX: 703 – 733 MHz, RX: 758 – 788 MHz) / n38 / n41 (2515-2690 MHz)
4G FDD LTE: Bands 1 / 2 / 3 / 4 / 5 / 6 / 7 / 8 / 9 / 12 / 17 / 18 / 19 / 20 / 26 / 28 / 32
4G TDD LTE: Bands 34 / 38 / 39 / 40 / 41
3G WCDMA: Bands 1 / 2 / 4 / 5 / 6 / 8 / 19
2G GSM: Bands 2 / 3 / 5 / 8 (850 / 900 / 1800 / 1900 MHz)

Secondary SIM card:
4G FDD LTE: Bands 1 / 2 / 3 / 4 / 5 / 6 / 7 / 8 / 9 / 12 / 17 / 18 / 19 / 20 / 26 / 28
4G TDD LTE: Bands 34 / 38 / 39 / 40 / 41
3G WCDMA: Bands 1 / 2 / 4 / 5 / 6 / 8 / 19
2G GSM: Bands 2 / 3 / 5 / 8 (850 / 900 / 1800 / 1900 MHz)
CONNECTIVITY WLAN: 802.11a/b/g/n/ac (wave2), 2.4 GHz and 5 GHz

Bluetooth: Bluetooth 5.1, BLE, SBC, AAC, LDAC.

USB: Type-C, USB 3.1 GEN1*
*This function should be used with the USB 3.1 GEN1 cable (non-standard USB cable, need to be purchased separately) that supports this function.
*The inbox USB cable supports USB 2.0.

Earjack: Type-C earjack
Others: PC Data Synchronisation
LOCATION GPS (L1 + L5 dual band) / AGPS / Glonass / BeiDou / Galileo (E1 + E5a dual band) / QZSS (L1 + L5 dual band)
NFC Read Write mode / Peer to Peer mode / Card Emulation mode (payment by SIM card, or HCE) is supported.
SIM card only support SIM 1 slot.
SENSORS Gesture Sensor
In-Screen Fingerprint Sensor
Gyroscope
Compass
Proximity Sensor
Gravity Sensor
Hall Sensor
Infrared Sensor
Ambient Light Sensor
Barometer
Colour Temperature Sensor
AUDIO .mp3, .mp4, .3gp, .ogg, .amr, .aac, .flac, .wav, .midi
VIDEO 3gp, mp4
IN THE BOX Phone (Built-in battery) x 1
Charger x 1
Type-C Cable x 1
Type-C Earphones x 1
Protective Case x 1 (No in Western Europe and Northeast Europe)
Quick Start Guide x 1
Eject Tool x 1
Warranty Card x 1
[wpinsertshortcodead id=”bzyqm5d3e04029f48f”]

Huawei Mate 30

Design and Display

The Huawei Mate 30 has two version 4G and 5G. Both the version features a regular flat display instead of a widely curved display but has the same exquisite halo ring design with a perfect fusion of reflection and refraction and has a similar circular camera unit.

Mate 30 display and design image 1
Mate 30 display and design image 2

Both the phone features a 6.62” FHD+ OLED full view display with a resolution of 1080×2340 and with an aspect ratio of 19.5:9. The screen comes with bezels all around the corners with a notch for the front camera and 3D depth sensors. The phone display includes DCI-P3 HDR coverage and an in-display fingerprint sensor.

Both of the phones includes a 3.5 mm headphone jack, IR blaster, volume control, highlighted power button, and under-display earpiece speaker. The measure of the phone is 160.8 x 76.1 x 8.4 mm, and it weighs 196 g.

The available color options for the 4G version are- Cosmic Purple, Space Silver, Emerald Green, and Black. For the 5G version of the phone color options are- Orange, Forest Green, Cosmic Purple, Space Silver, Emerald Green, and Black.

[wpinsertshortcodead id=”zxikm5d3e04a8f1451″]

Cameras

Mate 30 camera image

Both of the phones have the same camera module as Mate 30 Pro. The module includes a 40MP SuperSensing primary camera with an aperture of f/1.8, a 16MP Ultra Wide-angle camera with f/2.2 aperture, an 8MP Telephoto camera with f/2.4 aperture and OIS (3x optical zoom/5x hybrid zoom) and a Laser Focus for Autofocus and AIS.

The front camera includes a 24MP camera with a 3D depth-sensing camera.

low light photo
Mate 30- 8MP Telephoto camera

Both the 4G and 5G version of the phone can record 4K videos with AIS and 720p slow-motion videos at 960 fps. The front camera is capable of video recording at 1080p. The phone includes a Xenon flash and a color temperature sensor.

Performance

The same Kirin 990 octa-core chipset also powers both the Mate 30 and Mate 30 5G built on a 7nm+ EUV process. The CPU, GPU, and NPU specification of both the Mate 30 are the almost same as the Mate 30 Pro. Both the phones will be available with 8GB RAM + 128GB of internal storage and support external memory up to 256GB.

Battery

Both the 4G and 5G version of the phone carries a 4200mAh battery with 40W SuperCharge via USB Type-C port and 27W Wireless SuperCharging. The reverse wireless charging is also included in both the phones just like Mate 30 Pro.

Price

The Mate 30 for 8GB RAM+128GB internal memory comes at the cost of EURO 799 (Rs. 62,576 approx). The company didn’t mention the price of Mate 30 5G yet.

[wpinsertshortcodead id=”bzyqm5d3e04029f48f”]

Huawei Mate 30 Full specification

Mate 30 Mate 30 5G
DISPLAY Size: 6.62 inches

Colour: 16.7 million colours

Type: OLED

Resolution: FHD+ 2340 x 1080
Size: 6.62 inches

Colour: 16.7 million colours

Type: OLED

Resolution: FHD+ 2340 x 1080
SIZE Width: 76.1 mm

Height: 160.8 mm

Depth: 8.4 mm

Weight:
Approx 196 g (including the battery)
Width: 76.1 mm

Height: 160.8 mm

Depth: 8.4 mm

Weight:
Approx 196 g (including the battery)
COLOUR Cosmic Purple
Space Silver
Emerald Green
Black
Orange
Forest Green
Cosmic Purple
Space Silver
Emerald Green
Black
PROCESSOR CPU: HUAWEI Kirin 990 Octa-core Processor
2 x Cortex-A76 Based 2.86 GHz + 2 x Cortex-A76 Based 2.09 GHz + 4 x Cortex-A55 1.86 GHz

GPU: 16-Core Mali-G76

NPU: Big Core + Tiny Core NPUs (Neural-network Processing Unit)
CPU: HUAWEI Kirin 990 5G Octa-core Processor
2 x Cortex-A76 Based 2.86 GHz + 2 x Cortex-A76 Based 2.36 GHz + 4 x Cortex-A55 1.95 GHz

GPU: 16-Core Mali-G76

NPU: Dual Big Core + Tiny Core NPUs (Neural-network Processing Unit)
OPERATING SYSTEM EMUI10 (Based on Android 10) EMUI10 (Based on Android 10)
MEMORY 8 GB RAM + 128 GB ROM

External Memory Support: NM SD Card, up to 256 GB
8 GB RAM + 128 GB ROM

External Memory Support: NM SD Card, up to 256 GB
CAMERA Rear Camera: SuperSensing Triple Camera
40 MP (SuperSensing Camera, f/1.8 aperture) + 16 MP (Ultra Wide Angle Camera, f/2.2 aperture) + 8 MP (Telephoto Camera, f/2.4 aperture, OIS)
supports Autofocus (phase focus, contrast focus),
supports AIS (HUAWEI AI Image Stabilization).

Front Camera:
24 MP, f/2.0 aperture
Rear Camera: SuperSensing Triple Camera
40 MP (SuperSensing Camera, f/1.8 aperture) + 16 MP (Ultra Wide Angle Camera, f/2.2 aperture) + 8 MP (Telephoto Camera, f/2.4 aperture, OIS)
supports Autofocus (phase focus, contrast focus),
supports AIS (HUAWEI AI Image Stabilization).

Front Camera:
24 MP, f/2.0 aperture
BATTERY 4200 mAh (Typical Value)4200 mAh (Typical Value)
CHARGING HUAWEI SuperCharge (Max 40 W)
Wireless HUAWEI SuperCharge (27 W)
HUAWEI SuperCharge (Max 40 W)
Wireless HUAWEI SuperCharge (27 W)
NETWORK Primary SIM card: 4G FDD LTE: Bands 1 / 2 / 3 / 4 / 5 / 6 / 7 / 8 / 9 / 12 / 17 / 18 / 19 / 20 / 26 / 28 / 32 / 66
4G TDD LTE: Bands 34 / 38 / 39 / 40 / 41
3G WCDMA: Bands 1 / 2 / 4 / 5 / 6 / 8 / 19
3G TD-SCDMA: Bands 34 / 39
2G GSM: Bands 2 / 3 / 5 / 8 (850 / 900 / 1800 / 1900 MHz)

Secondary SIM card: 4G FDD LTE: Bands 1 / 2 / 3 / 4 / 5 / 6 / 7 / 8 / 9 / 12 / 17 / 18 / 19 / 20 / 26 / 28 / 66
4G TDD LTE: Bands 34 / 38 / 39 / 40 / 41
3G WCDMA: Bands 1 / 2 / 4 / 5 / 6 / 8 / 19
2G GSM: Bands 2 / 3 / 5 / 8 (850 / 900 / 1800 / 1900 MHz)
Primary SIM card: 5G NR: n77 / n78 / n79,n1 / n3 / n28 (TX: 703 – 733 MHz, RX: 758 – 788 MHz) / n38 / n41 (2515-2690 MHz)
4G FDD LTE: Bands 1 / 2 / 3 / 4 / 5 / 6 / 7 / 8 / 9 / 12 / 17 / 18 / 19 / 20 / 26 / 28 / 32
4G TDD LTE: Bands 34 / 38 / 39 / 40 / 41
3G WCDMA: Bands 1 / 2 / 4 / 5 / 6 / 8 / 19
2G GSM: Bands 2 / 3 / 5 / 8 (850 / 900 / 1800 / 1900 MHz)

Secondary SIM card: 4G FDD LTE: Bands 1 / 2 / 3 / 4 / 5 / 6 / 7 / 8 / 9 / 12 / 17 / 18 / 19 / 20 / 26 / 28
4G TDD LTE: Bands 34 / 38 / 39 / 40 / 41
3G WCDMA: Bands 1 / 2 / 4 / 5 / 6 / 8 / 19
2G GSM: Bands 2 / 3 / 5 / 8 (850 / 900 / 1800 / 1900 MHz)
CONNECTIVITY WLAN: 802.11a/b/g/n/ac (wave2), 2.4 GHz and 5 GHz
Bluetooth: Bluetooth 5.1, BLE, SBC, AAC, LDAC.
USB: Type-C, USB 3.1 GEN1*
*This function should be used with the USB 3.1 GEN1 cable (non-standard USB cable, need to be purchased separately) that supports this function.
*The inbox USB cable supports USB 2.0.
Earjack: Type-C earjack
Others: PC Data Synchronisation
WLAN: 802.11a/b/g/n/ac (wave2), 2.4 GHz and 5 GHz
Bluetooth: Bluetooth 5.1, BLE, SBC, AAC, LDAC.
USB: Type-C, USB 3.1 GEN1*
*This function should be used with the USB 3.1 GEN1 cable (non-standard USB cable, need to be purchased separately) that supports this function.
*The inbox USB cable supports USB 2.0.
Earjack: Type-C earjack
Others: PC Data Synchronisation
LOCATION GPS (L1 + L5 dual band) / AGPS / Glonass / BeiDou / Galileo (E1 + E5a dual band) / QZSS (L1 + L5 dual band) GPS (L1 + L5 dual band) / AGPS / Glonass / BeiDou / Galileo (E1 + E5a dual band) / QZSS (L1 + L5 dual band)
NFC Read Write mode / Peer to Peer mode / Card Emulation mode (payment by *SIM card, or HCE) is supported. *SIM card only support SIM 1 slot. Read Write mode / Peer to Peer mode / Card Emulation mode (payment by *SIM card, or HCE) is supported. *SIM card only support SIM 1 slot.
SENSORS Gesture Sensor
In-Screen Fingerprint Sensor
Gyroscope
Compass
Proximity Sensor
Gravity Sensor
Hall Sensor
Infrared Sensor
Ambient Light Sensor
Barometer
Colour Temperature Sensor
Gesture Sensor
In-Screen Fingerprint Sensor
Gyroscope
Compass
Proximity Sensor
Gravity Sensor
Hall Sensor
Infrared Sensor
Ambient Light Sensor
Barometer
Colour Temperature Sensor
AUDIO .mp3, .mp4, .3gp, .ogg, .amr, .aac, .flac, .wav, .midi .mp3, .mp4, .3gp, .ogg, .amr, .aac, .flac, .wav, .midi
VIDEO 3gp, mp4 3gp, mp4
IN THE BOX Phone (Built-in battery) x 1
Charger x 1
Type-C Cable x 1
3.5 mm Headset x 1
Protective Case x 1 (No in Western Europe and Northeast Europe) *
Quick Start Guide x 1
Eject Tool x 1
Warranty Card x 1
Phone (Built-in battery) x 1
Charger x 1
Type-C Cable x 1
3.5 mm Headset x 1
Protective Case x 1 (No in Western Europe and Northeast Europe) *
Quick Start Guide x 1
Eject Tool x 1
Warranty Card x 1
[wpinsertshortcodead id=”zxikm5d3e04a8f1451″]

Huawei Mate 30 RS Porsche Design

Huawei Mate 30 RS Porsche Design

The Mate 30 RS Porsche Design takes the Huawei Mate 30 Pro 5G to the luxury segment. The most significant modification on the phone is the brand-new style on the back, as the phone leaves the circular camera real estate, and choose a quad-camera setup mounted within a vertically aligned glass strip that is flanked by leather on its sides. The Porsche Design logo design likewise inhabits the central area, while the Huawei logo design discovers area towards the bottom of the glass strip.

The Huawei Mate 30 RS Porsche Design likewise gets a substantial bump in RAM to 12GB, and in storage to 512GB. Click here to see full specification.

Huawei Mate 30 RS Porsche Design features a coordinating color case with an integrated kickstand and strap for slotting your finger in for grip.

The Mate 30 RS Porsche Design features a coordinating color case with an integrated kickstand and strap for slotting your finger in for grip. The kickstand will help in enjoying multimedia on the phone in landscape, while likewise offering a more safe grip for holding.

This special edition is priced at EURO 2,095 (Rs. 1,64,404 approx).

[wpinsertshortcodead id=”bzyqm5d3e04029f48f”]

For the latest tech news and updates about technology follow Whooptous on FacebookTwitter and Pinterest.

Whooptous News Desk
We are a group of Engineers who are tech enthusiasts and like to make people aware of the latest technologies and how it may also help people to enhance and improve life. We dig deep into the below-ground depths of technological understanding, digging up the most vital, behind-the-scenes information. Contact Whooptous staff at [email protected] or by filling the Contact Form.

Follow us

1,465FansLike
1,110FollowersFollow

Trending

Windows 10 black screen

How to fix black screen issue on Windows 10 by troubleshooting connection problems and...

0
On Windows 10, a black screen can take place for a number of factors. It can be connected...
microsoft build 2020

Microsoft Build 2020 Developer Conference from May 19-21

0
Microsoft announced the dates for its flagship event Microsoft Build 2020 developer conference which are going to takes place next year.
Windows 10 optional cumulative update

Optional cumulative update KB4550945 for Windows 10 version 1909 and 1903

0
Microsoft releases new optional patch updates KB4550945 for Windows 10 version 1909 and 1903 following the Patch Tuesday of this month, which is a week ago.
Microsoft flaunts new Windows logo and redesigned app icons- feature image

Microsoft flaunts new Windows logo and redesigned app icons

0
Recently, Microsoft has published a post in Medium about the new Office icons. The company redesigned the icons to cop up with the changing world.

Intel 10th Generation Processors “Comet Lake” Line-up leaked

0
Earlier AMD's Ryzen 7 3000 family, providing a body blow to Intel's whole high-end product stack. The...
